Warp a scale so that intervals between fixed points are equally spaced

Warping gives each interval between successive warp points the same width, however much of the scale it actually covers. Warp point i is placed at position i, and values in between are placed by linear interpolation with stats::approx(): a value one third of the way between two warp points is drawn one third of the way between their positions. Every interval is therefore exactly one unit wide, so wide intervals are compressed and narrow ones stretched.

transform_warp(warps)

Arguments

warps

A sorted vector of at least two points, giving the fixed points between which the scale is stretched or compressed. Should match the data being warped: a mixtime (or Date/POSIXt) vector for a time scale, or a numeric vector otherwise.

Value

A <transform> object, suitable for the transform argument of ggplot2::scale_x_continuous() or scale_x_mixtime().

Details

Values outside the range of warps cannot be placed, and become NA. Because panels are drawn with their range expanded beyond the data, warps should extend past the data on both sides rather than merely cover it.

warps should be of a type compatible with the data being warped: a time vector to warp time, or a numeric vector to warp a numeric scale.

Warping time series

Warping is particularly useful for time series, where the intervals of a granularity are often unequal: calendar months span 28 to 31 days, so a daily series drawn on a linear axis gives February less width than March. Warping at month boundaries removes that unevenness, making months comparable at a glance and putting each month's gridlines at a regular spacing.

Warp points need not share the data's granularity: they are converted to the data's chronon before being compared with it, so monthly warp points can place daily observations.

Warping does change the granularity of the scale to that of warps, with time points becoming continuous positions within that chronon rather than whole units of it. Breaks and labels follow suit, so a monthly warp labels its axis in months: a day in mid January is month 612.5, which mixtime prints as 2021 Jan 50.0%. Fractions track the real calendar, so 613.5 is the midpoint of 28 day February and 614.5 the midpoint of 31 day March.

Examples

library(ggplot2)

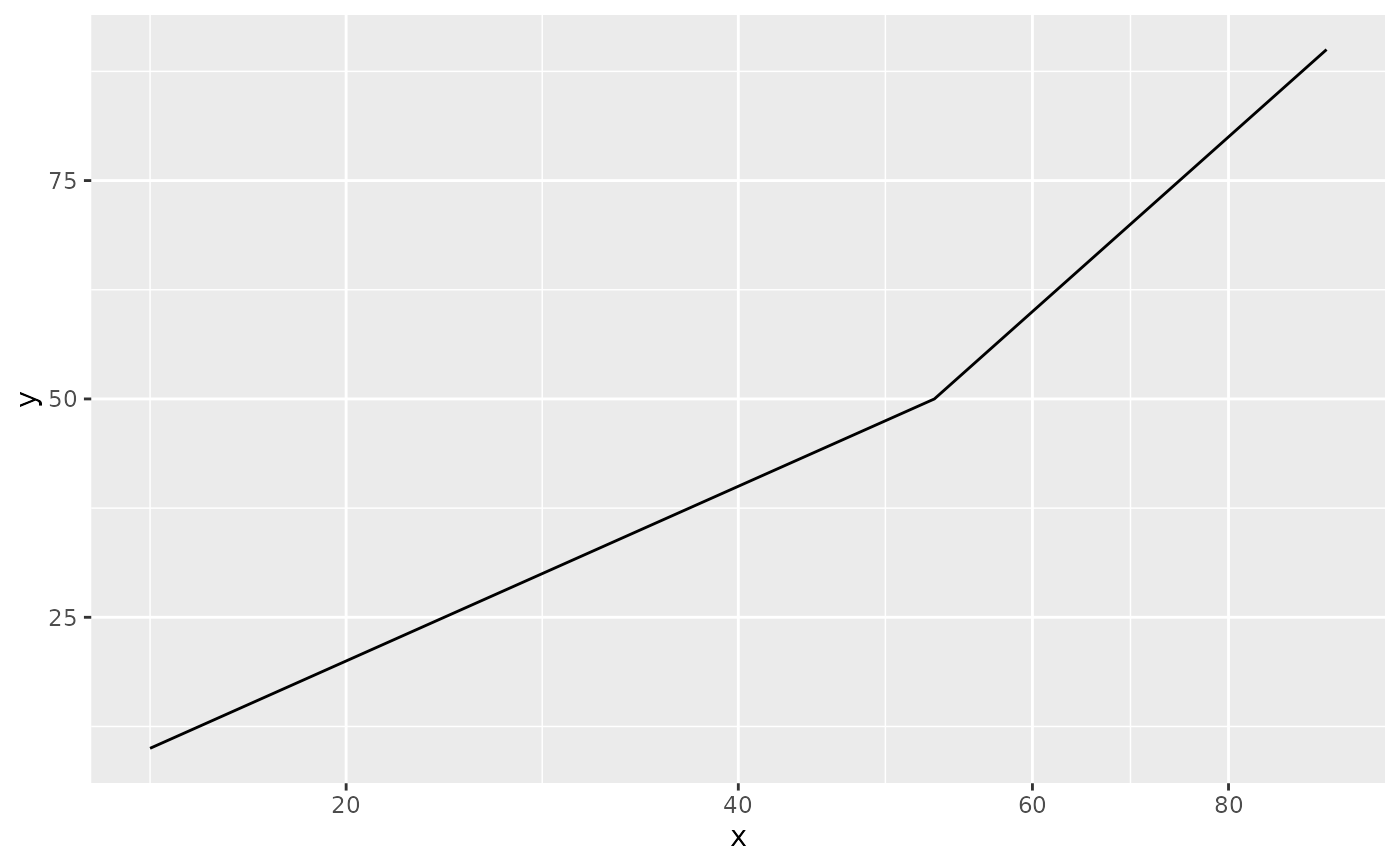

# Warp points need not be evenly spaced. A straight line makes the effect
# obvious: it kinks at x = 50, where the intervals change from 25 wide to 50
# wide, halving the slope from there on.
ggplot(data.frame(x = 10:90, y = 10:90), aes(x, y)) +
  geom_line() +
  scale_x_continuous(transform = transform_warp(c(0, 25, 50, 100)))


# Daily pedestrian counts for the first quarter of 2021: busy on weekdays,
# much quieter at the weekend, drifting upwards over the quarter.
pedestrians <- data.frame(
  date = mixtime::date("2021-01-01") + 0:89,
  count = round(
    ifelse(seq_along(date) %% 7 %in% c(2, 3), 4500, 12000) +
      cumsum(rnorm(length(date), 15, 150)) +
      rnorm(length(date), 0, 700)
  )
)

# Warp points extend a month either side of the data, because panels are drawn
# with their range expanded beyond it. They are monthly while the data is
# daily, which is fine: warp points are converted to the data's granularity.
month_starts <- mixtime::yearmonth("2020 Dec") + 0:5

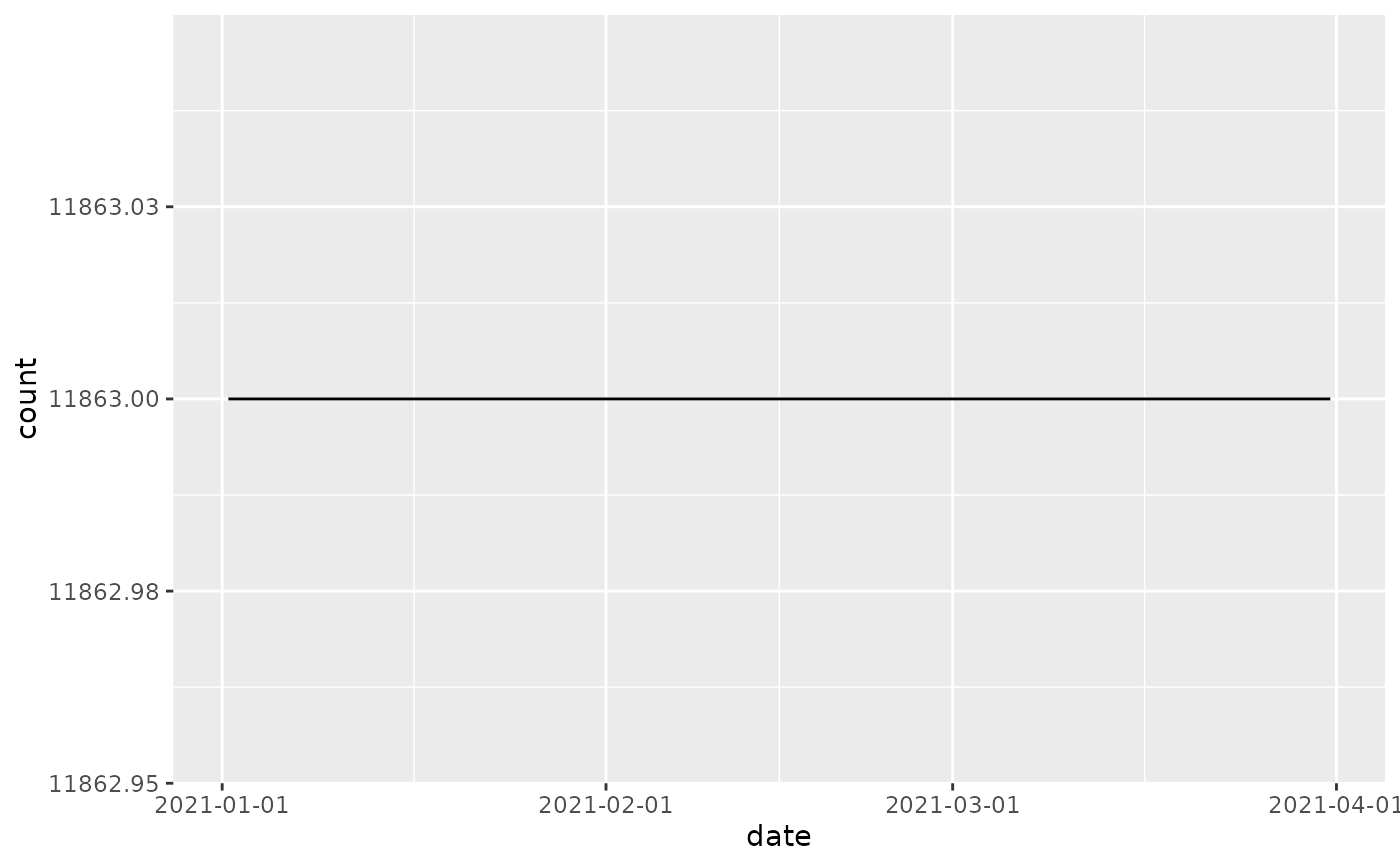

# Without warping, the weekly cycle is evenly spaced but the month gridlines
# are not: 28 day February is drawn narrower than its 31 day neighbours.
ggplot(pedestrians, aes(date, count)) +
  geom_line() +
  scale_x_mixtime(breaks = month_starts + 0)

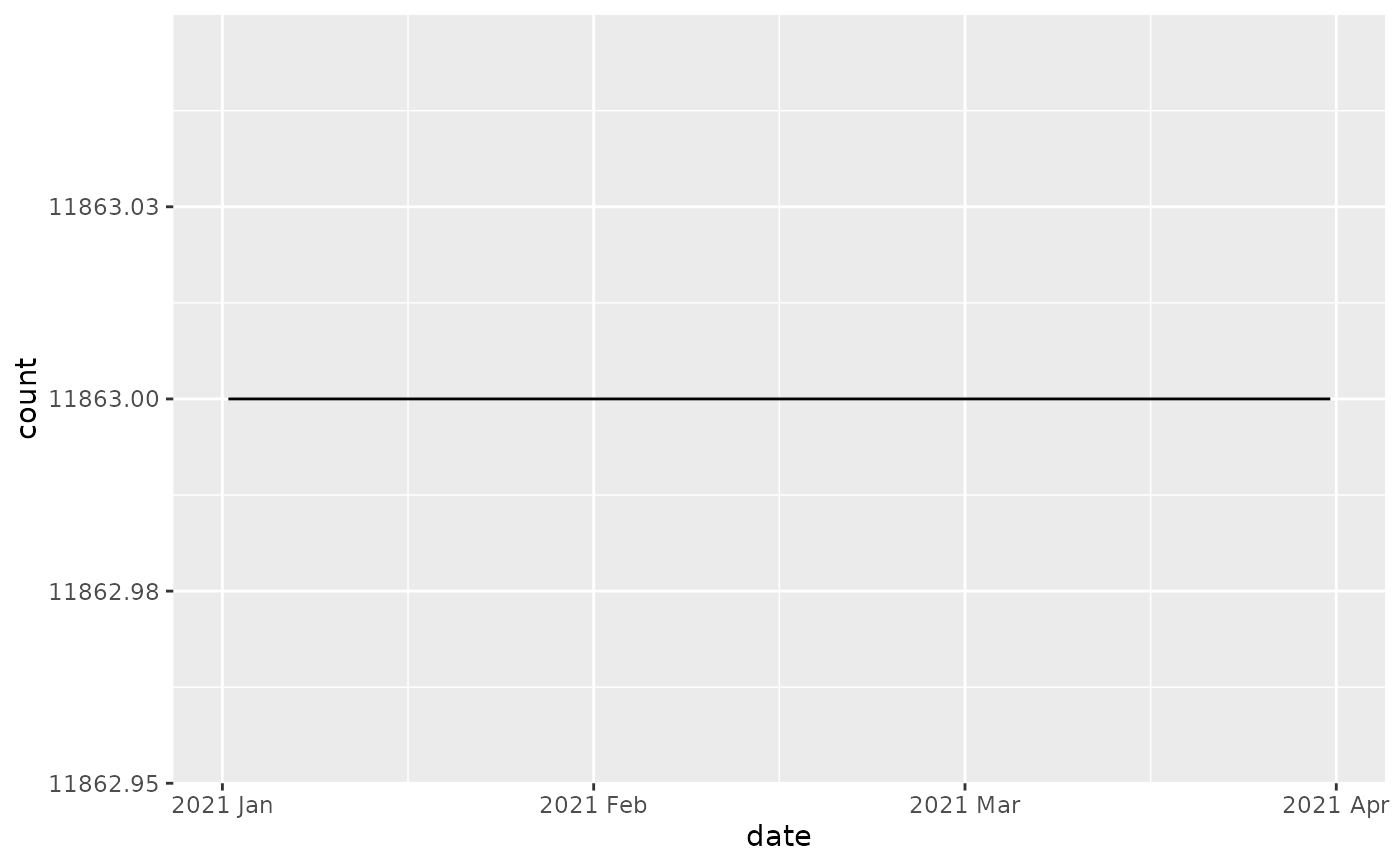

# Warping at the start of each month evens out the gridlines, but the length
# of each day is adjusted: the 28 days of February and 31 days of January and
# March are stretched or compressed to the same width over the month.
ggplot(pedestrians, aes(date, count)) +
  geom_line() +
  scale_x_mixtime(
    breaks = month_starts,
    # + 0 indicates the start of each month (continuous time model)
    transform = transform_warp(month_starts + 0)
  )
