Looped coordinates

The looped coordinate system loops the cartesian coordinate system around specific loop points. This is particularly useful for visualising seasonal patterns that repeat over calendar periods, since the shape of seasonal patterns can be more easily seen when superimposed on top of each other.

coord_loop(
  loops = waiver(),
  time_loops = waiver(),
  time = "x",
  xlim = NULL,
  ylim = NULL,
  expand = FALSE,
  default = FALSE,
  clip = "on",
  coord = coord_cartesian()
)

Arguments

loops

Loop the time scale around a calendrical granularity, one of:

• NULL or waiver() for no looping (the default)

• A mixtime vector giving time points at which the time axis should loop

• A function that takes the limits as input and returns loop points as output

time_loops

A duration giving the distance between temporal loops, such as mixtime::weeks(2L) or mixtime::years(10L). If both loops and time_loops are specified, time_loops wins.

time

A string specifying which aesthetic contains the time variable that should be looped over. Default is "x".

xlim, ylim

Limits for the x and y axes. NULL means use the default limits.

expand

Logical indicating whether to expand the coordinate limits. Default is FALSE.

default

Logical indicating whether this is the default coordinate system. Default is FALSE.

clip

Should drawing be clipped to the extent of the plot panel? A setting of "on" (the default) means yes, and a setting of "off" means no.

coord

The underlying coordinate system to use. Default is coord_cartesian().

Value

A Coord ggproto object that can be added to a ggplot.

Details

This coordinate system is particularly useful for visualizing seasonal or cyclic patterns in time series data. It works by:

1. Dividing the time axis into loops based on the specified loop period

2. Folding the time values of every loop into the first loop's window

3. Cutting geometries that cross a loop boundary into one piece per loop

Since the looping is applied to the data rather than to the drawing, the panel is drawn only once regardless of how many loops are shown. The cost of the plot is therefore independent of the number of loops.

Practical usage

The looped coordinate system reveals patterns that repeat over regular time periods, such as annual seasonality in monthly data, or weekly patterns in daily data. It allows the [x/y] time aesthetic to be specified continuously, and loops the time axis around specified time intervals. This allows time within seasonal periods to be compared directly, and highlights the shape of seasonal patterns. This is commonly used in time series analysis to identify the peaks and troughs of seasonal patterns.

A key advantage of time being specified continuously is that the connection between the end of one seasonal period and the start of the next is preserved. This is otherwise lost when time is discretised into ordered factors (e.g. months of the year, or days of week). This allows lines and other geometries to be drawn across seasonal boundaries, such as a line that connects December to January when plotting annual seasonality.

Looping arranges time cyclically, so the time axis describes a position within the loop rather than the passage of time. The axis is labelled to match: monthly data looped over years is labelled with months of the year ("Jan", "Feb", ...), and daily data looped over weeks with days of the week ("Mon", "Tue", ...). Which labels are appropriate depends on both the chronon of the data and the loop's cycle, and is determined by the calendar being used. Labels given with the labels or time_labels options of scale_x_mixtime() are used unchanged, since they say how the user wants time written.

The justification of looping can be controlled using the align_discrete option of scale_x_mixtime(), where values from 0 to 1 specify the alignment. Left alignment (align_discrete = 0) places inter-seasonal connections on the left of the panel, right alignment (align_discrete = 1) uses the right side, and center alignment (align_discrete = 0.5, the default) uses equal spacing on both ends of the season.

Why not use seasonal factors?

Using factors to represent seasonal periods is common, but prone to errors and is very limiting. Suppose you want to visualize weekly seasonality in daily data. You could convert the date into a day of week factor (e.g. with lubridate::wday(date, label = TRUE)), but this loses information about the year and week of the observation. In order to correctly draw lines connecting each day of the week (avoiding sawtooth patterns), you would additionally need to group by year and week to separately identify each line segment. The aesthetic mapping for plotting this pattern would look something like:

aes(
  x = lubridate::wday(date, label = TRUE),
  group = interaction(lubridate::year(date), lubridate::week(date)),
  y = value
)

These operations are error-prone, cumbersome, and are complicated to update to show different seasonal patterns. For example, if you wanted to instead show the annual seasonal pattern, both the x and group aesthetics would need to be changed (to day of year and year respectively). Any errors in this process would produce sawtooth patterns or other artifacts in the plot.

Another common error in discretizing time into seasonal factors is incorrect ordering of the factor levels. For example, if you instead used strftime(date, "%a") to get the day of week, the levels would be sorted alphabetically rather than in time order ("Fri", "Mon", "Sat", ...). No-one wants to Monday to follow Friday!

Discretizing time into seasonal factors also prevents plotting the seasonal pattern across multiple granularities. For example when visualizing weekly seasonality across data at daily and hourly frequencies, both day of week and hour of week are needed. Since these factors have different levels, they cannot be plotted on the same axis. In contrast, it is possible to plot both daily and hourly data on the same axis using scale_x_mixtime(), which can then be looped over weekly periods with coord_loop(time_loops = mixtime::weeks(1L)).

Another subtle issue of using factors instead of continuous time is that spacing between time points is regularized. For example, when plotting the annual seasonal pattern with months as a factor, each month is given equal width on the x-axis despite the fact that months have different lengths.

Known limitations

Geometries are cut into loops by splitting the paths and rings that make them up, which requires those shapes to be monotone along the time axis. This works works for lines, paths, ribbons, areas, rects, tiles, bars, columns and segments. A non-monotone concave polygon that crosses a loop boundary is not cut correctly.

Examples

library(ggplot2)
library(ggtime)
library(mixtime)

# Basic usage with US accidental deaths data
uad <- tsibble::as_tsibble(USAccDeaths)
# Requires mixtime, POSIXct, or Date time types
uad$index <- mixtime::yearmonth(uad$index)

p <- ggplot(uad, aes(x = index, y = value)) +
  geom_line()

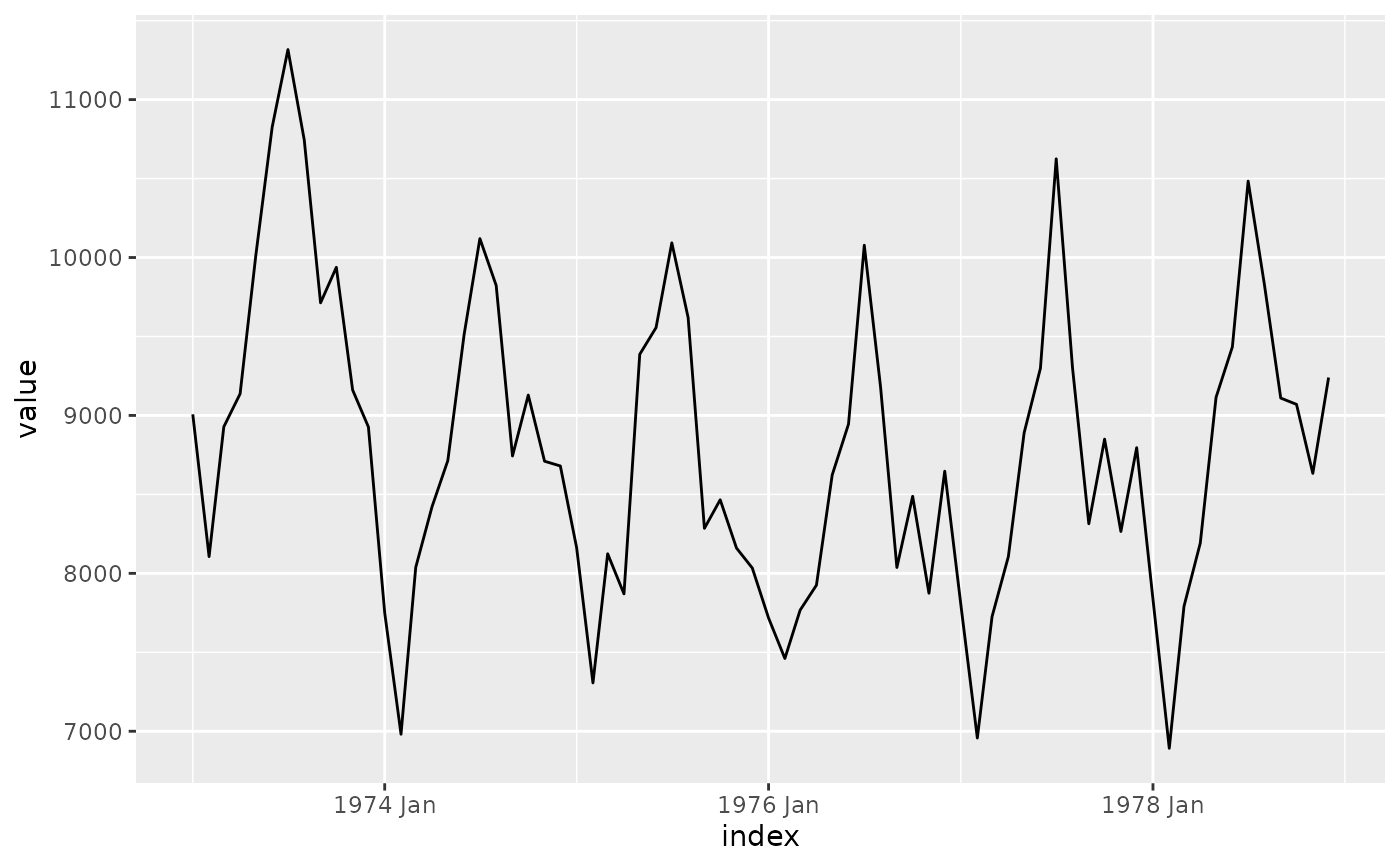

# Original plot
p

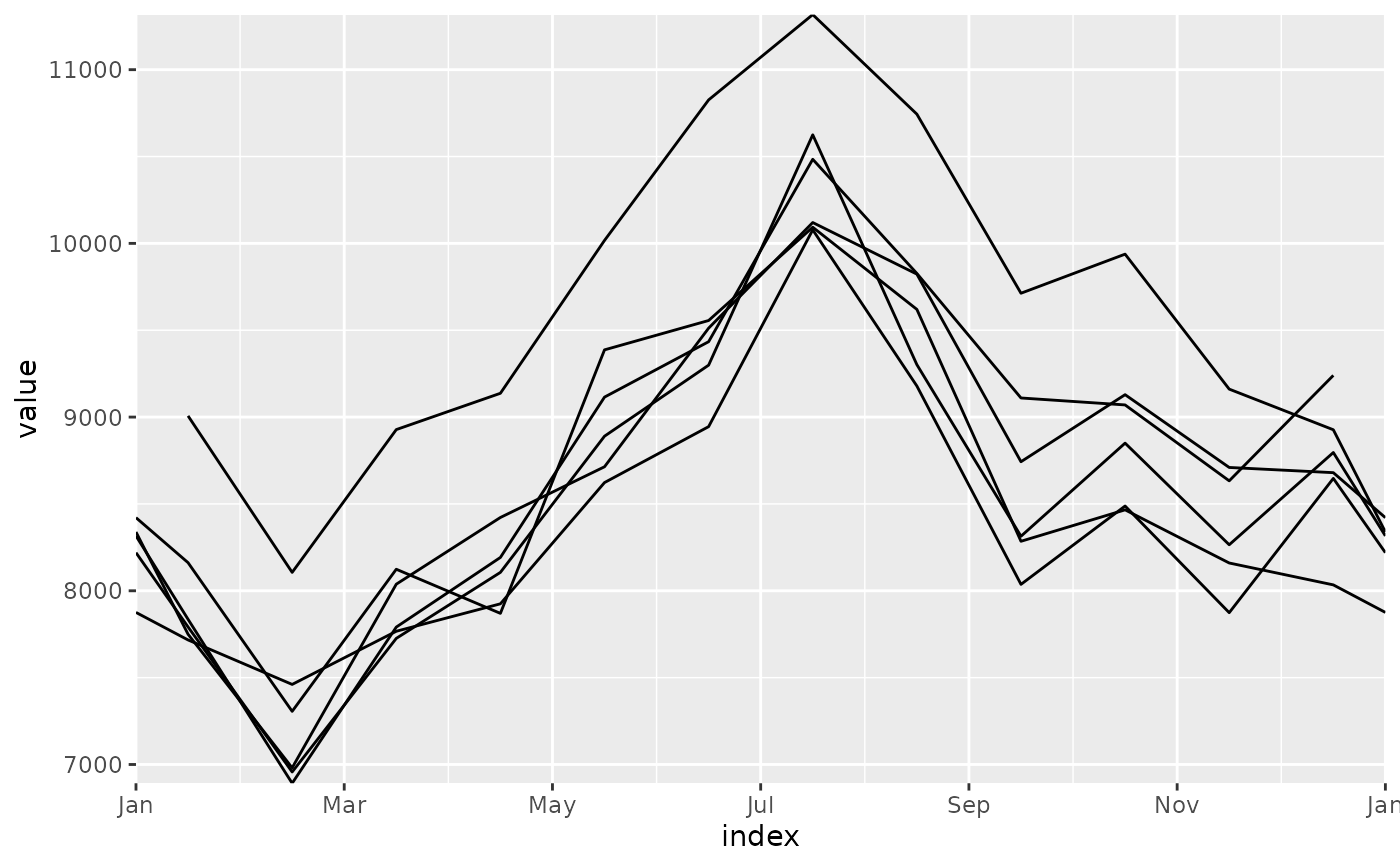

# With yearly looping to show seasonal patterns
p + coord_loop(time_loops = mixtime::years(1L))
