Calendar coordinates

Source: R/coord-calendar.R

Arranges time series data into a calendar-like layout of rows and columns. Data is cut into loops as in coord_loop(), with each loop becoming its own row and column of a grid rather than being overlaid.

coord_calendar(
  cells = day(1L),
  rows = week(1L),
  blocks = NULL,
  panes = month(1L),
  cols = quarter(1L),
  pane_spacing = 0.25,
  col_spacing = 0.1,
  cell_ratio = NULL,
  label_cells = "{cyc(day, month)}",
  label_rows = NULL,
  label_blocks = NULL,
  label_panes = "{cyc(month, year, label = TRUE, abbreviate = TRUE)}",
  label_cols = NULL,
  time = "x",
  xlim = NULL,
  ylim = NULL,
  expand = FALSE,
  default = FALSE,
  clip = "on",
  coord = coord_cartesian()
)

Arguments

cells

Size of a calendar cell (see the Granule hierarchy section); governs the cell labels and the only gridline drawn along the time axis.

  • NULL: no cells, no gridlines, no cell labels

  • a granule or duration, e.g. mixtime::days(1L)

Defaults to day(1L).

rows

Size of a calendar row: coord_loop()'s time_loops under a calendar-specific name.

  • NULL: a single row spanning the whole column

  • a granule or duration, e.g. mixtime::days(7L)

Defaults to week(1L), or day(7L) if the calendar has no week.

blocks

Size of a calendar block: rows are grouped and marked with a thicker gridline where each block starts.

  • NULL (default): no blocks

  • a granule or duration, e.g. mixtime::months(1L)

panes

Size of a calendar pane: rows are grouped and set apart by a gap rather than a rule. Must be coarser than rows, no coarser than cols.

  • NULL: no panes

  • a granule or duration, e.g. mixtime::months(1L)

Defaults to month(1L), silently dropped if it doesn't fit.

cols

Size of a calendar column, arranged left to right with no wrapping.

  • NULL: a single column spanning the whole time range

  • a granule or duration, e.g. mixtime::quarters(1L)

Defaults to quarter(1L), or month(3L) if the calendar has no quarter.

pane_spacing, col_spacing

Gap between panes of rows / between columns, as a fraction of one row's height / one column's width.

cell_ratio

Aspect ratio of a calendar cell, as its height divided by its width, in the manner of ggplot2::coord_fixed() but applied to a cell rather than to the data units of the axes.

  • NULL (default): the panel takes whatever shape it is given

  • a number, e.g. 1 for the square cells of a printed calendar

Fixing a cell fixes the panel's own aspect ratio, so this cannot be combined with a coord that sets its own ratio, and theme(aspect.ratio = ) overrides it. Applies to a whole row's tile when there are no cells to divide it.

label_cells, label_rows, label_blocks, label_panes, label_cols

How to label each instance of a granule:

  • a mixtime format string, as time_labels of scale_x_mixtime(), e.g. "{cyc(day, month)}" (a bare "{day}" is not valid)

  • a function of the granule's times, returning a character vector

  • NULL (default except for label_cells/label_panes): no labels

Named by the time each instance starts, except a block or pane (which spans several rows), named by the time in the middle of the group.

time

A string specifying which aesthetic contains the time variable that should be looped over. Default is "x".

xlim, ylim

Limits for the x and y axes. NULL means use the default limits.

expand

Logical indicating whether to expand the coordinate limits. Default is FALSE.

default

Logical indicating whether this is the default coordinate system. Default is FALSE.

clip

Should drawing be clipped to the extent of the plot panel? A setting of "on" (the default) means yes, and a setting of "off" means no.

coord

The underlying coordinate system to use. Default is coord_cartesian().

Details

Useful for visualizing long time spans with events over short intervals, such as holidays. Cuts the time axis at every calendar boundary at once, folds each piece into its row's window, and offsets it into its cell of the grid. As with coord_loop(), geometries crossing a boundary are cut, justified per align_discrete (see scale_x_mixtime()).

Granule arguments

cells/rows/blocks/panes/cols each accept:

  • NULL

  • a duration, e.g. mixtime::days(1L)

  • a time granule, e.g. mixtime::cal_gregorian$month(1L)

  • a bare expression, e.g. day(1L) or month(1L), naming a granule of whichever calendar the time axis resolves to (from the scale's common chronon, or the Gregorian calendar for a plain Date/POSIXct axis)

Granule hierarchy

Granules sit in a strict hierarchy: col, pane, block, row, cell. A granule never straddles a boundary of anything above it; a row cut short by a coarser boundary is left blank for the rest of its width, as on a printed calendar.

Breaks and labels

The time axis is broken at every cells boundary and labelled as a position within the rows cycle (e.g. "Mon", "Tue", ...), unless breaks/labels/time_breaks/time_labels are set explicitly (see scale_x_mixtime()). Falls back to the scale's own breaks when cells or rows is NULL, cells can't cut the axis, or a row holds too many cells to name individually.

Theming

Each granule has its own theme elements, ggtime.calendar.<granule>.line, .background and .text (<granule> = cell, row, block, pane or col), inheriting from panel.grid, panel.background and text. The panel's own grid is not drawn; the cell granule rules the time axis instead.

+ theme(
  ggtime.calendar.block.line = element_line(linewidth = 1, linetype = "22"),
  ggtime.calendar.cell.line = element_blank()
)

A granule's labels are justified within the granule they belong to, each in a different default corner so several can be labelled at once without colliding.

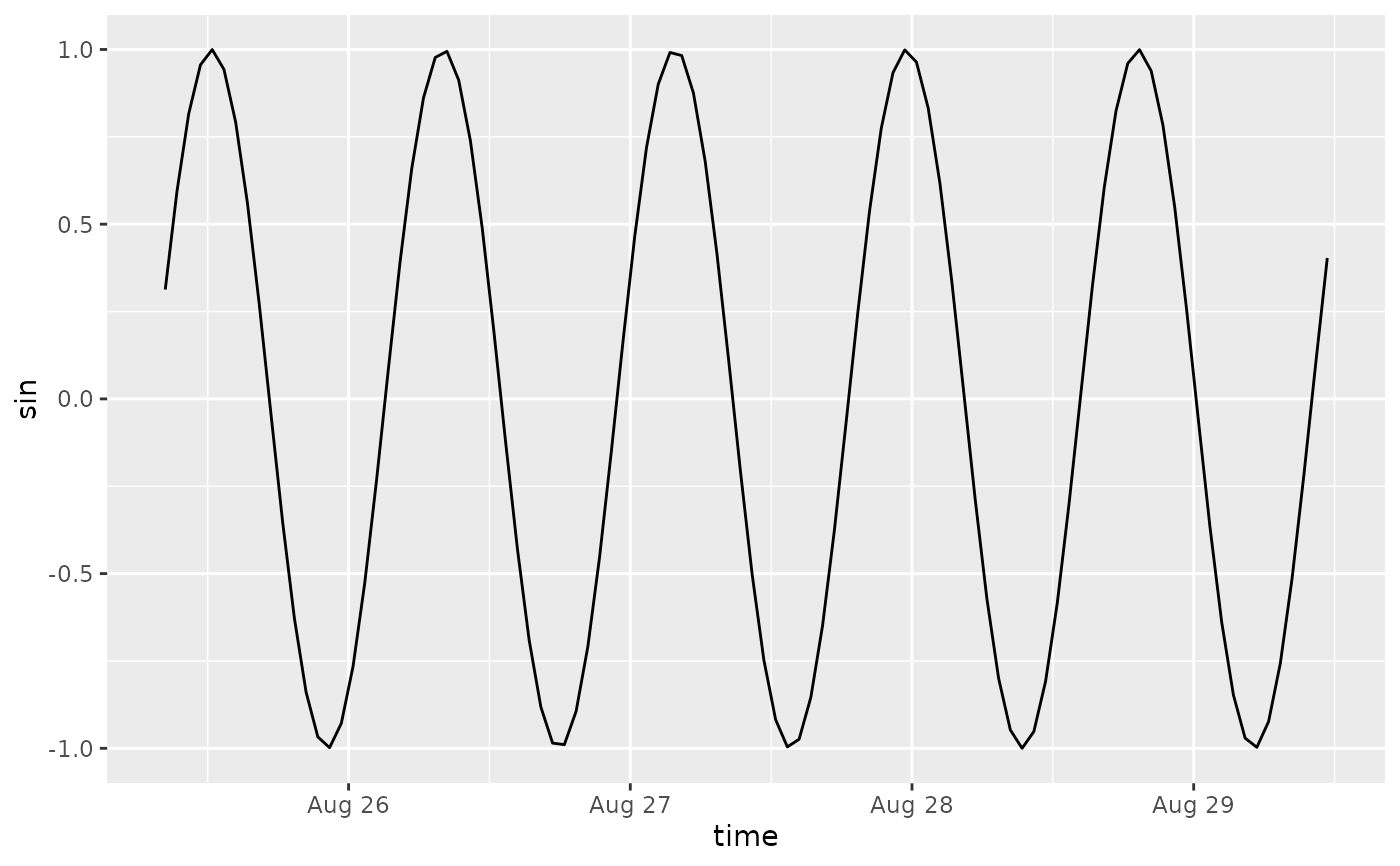

Examples

library(ggplot2)
library(mixtime)
#>
#> Attaching package: ‘mixtime’
#> The following objects are masked from ‘package:base’:
#>
#>     date, months, quarters

# Hourly pedestrian counts in Melbourne, as mixtime time points.
pedestrian <- dplyr::mutate(tsibble::pedestrian, Time = datetime(Date_Time))

# A monthly calendar arrangement of pedestrian counts, showing the high
# activity at Birrarung Marr during the Australian Open in late January.
pedestrian_2015 <- dplyr::filter(
  pedestrian,
  mixtime::year(Time) == mixtime::year(2015),
  Sensor == "Birrarung Marr"
)
ggplot(pedestrian_2015, aes(x = Time, y = Count, color = Sensor)) +
  geom_line() +
  coord_calendar(rows = month(1L), cols = NULL) +
  scale_x_mixtime(
    time_breaks = mixtime::days(1L),
    time_labels = "{cyc(day, cal_isoweek$week, label = TRUE, abbreviate = TRUE)}"
  ) +
  theme(
    legend.position = "bottom",
    axis.text.y = element_blank(), axis.ticks.y = element_blank()
  )
